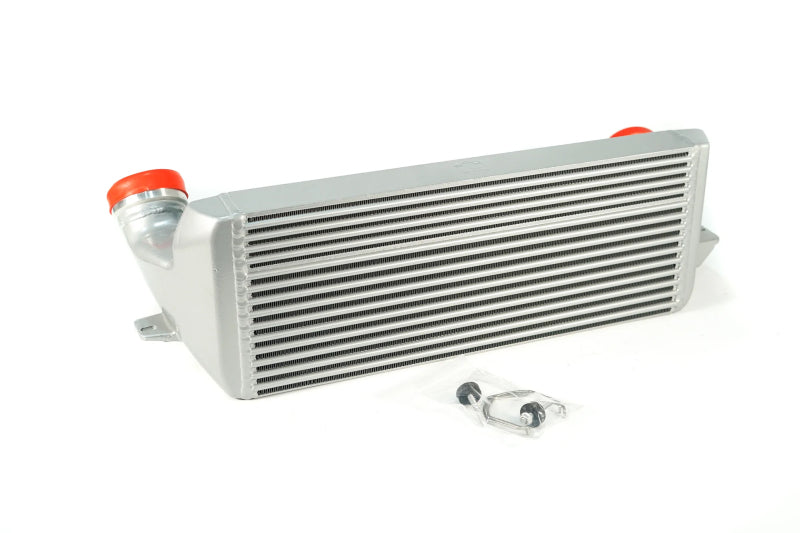

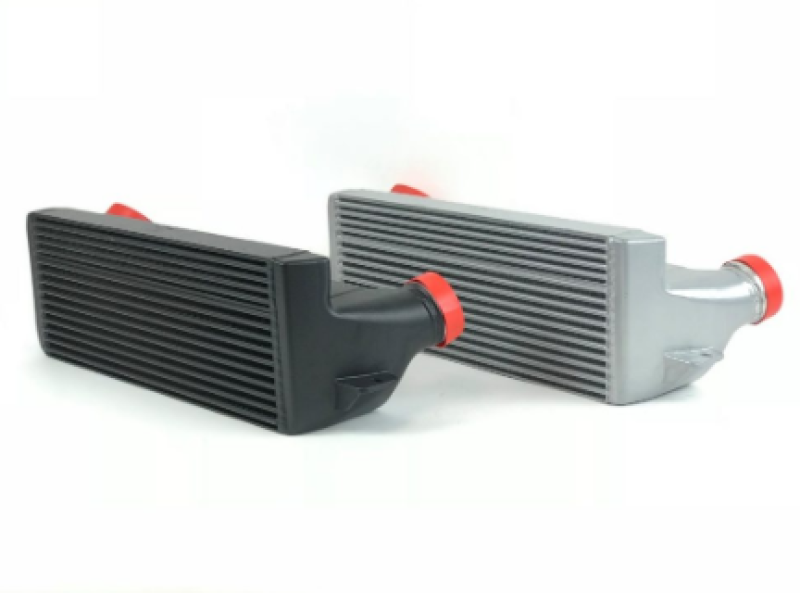

• Photo - Primary
  • Photo - Primary

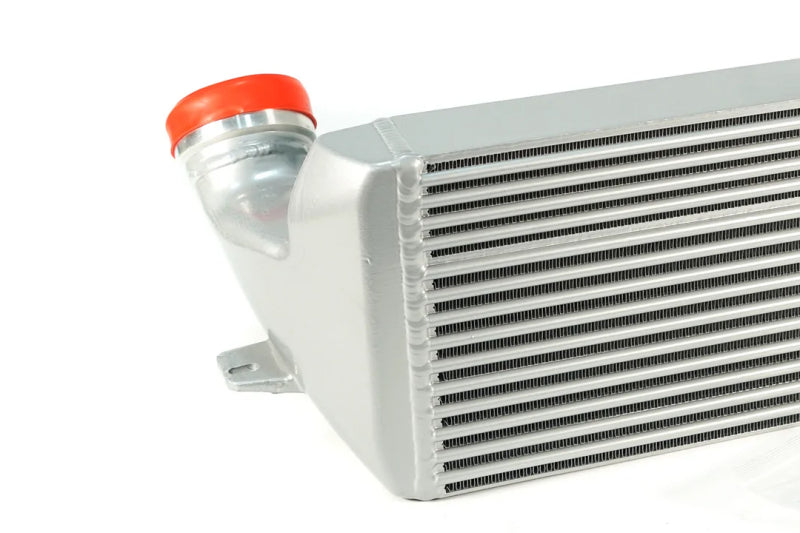

  • Photo - Close Up

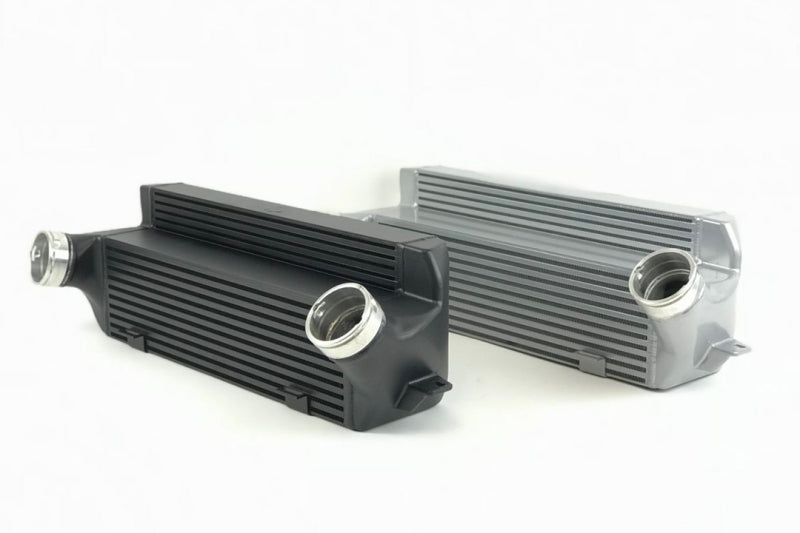

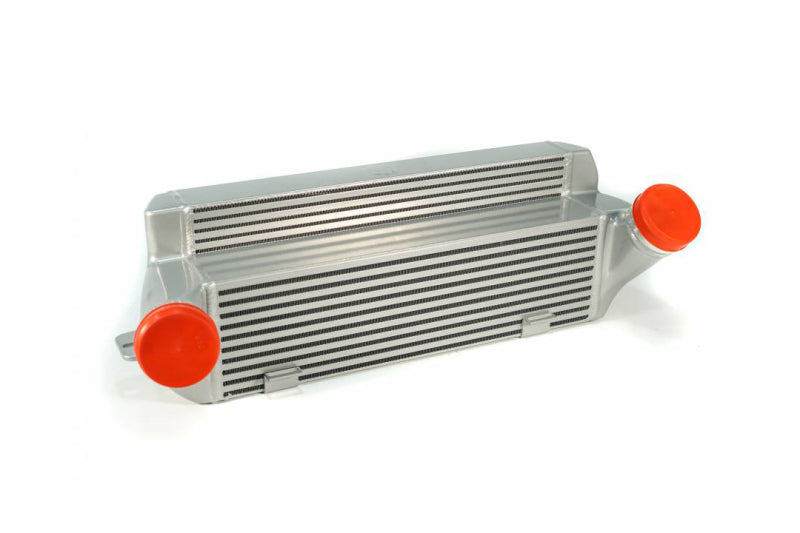

  • Photo - out of package
  • Photo - out of package

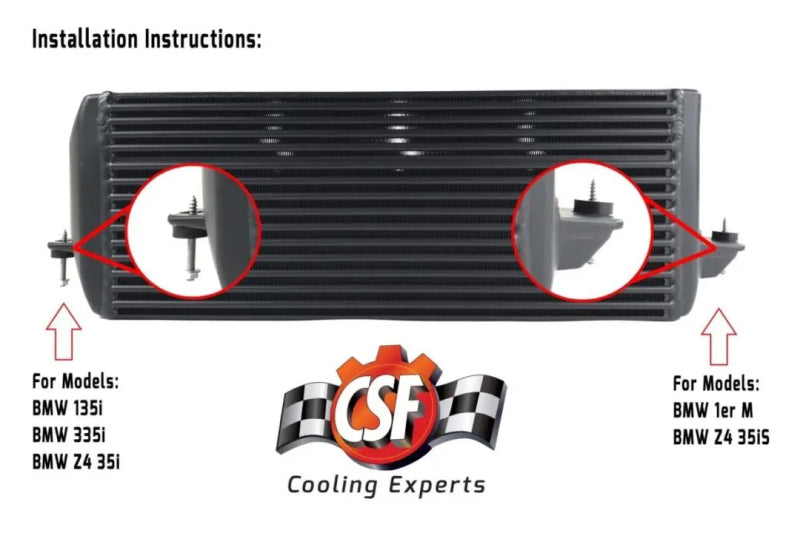

  • Installation Instructions
  • Logo Image
1 7

CSF 04-13 BMW 335i/xi (E90/E91/E92/E93) High Performance Stepped Core Bar/Plate Intercooler - Silver

CSF 04-13 BMW 335i/xi (E90/E91/E92/E93) High Performance Stepped Core Bar/Plate Intercooler - Silver

$499.00 USD
$529.00 USD $499.00 USD
-5%
CSF
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

CSF8127
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

Out of stock
Intercoolers
The OEM intercooler is made from plastic end tanks that are crimped onto an aluminum tube/fin core that is 4 inches thick (105mm core width) and is 5 inches in...
Read more
Found a better price elsewhere?
secure-payments
View full details
Free S&H Over $100 to Lower 48 Freight Items & Fluids Only Exception
Easy 30 Days- No Hassle Returns
37,000+ 5 Star Reviews
MFG Fitment Guarantee
Free S&H Over $100 to Lower 48 Freight Items & Fluids Only Exception
Easy 30 Days- No Hassle Returns
37,000+ 5 Star Reviews
MFG Fitment Guarantee

Description

The OEM intercooler is made from plastic end tanks that are crimped onto an aluminum tube/fin core that is 4 inches thick (105mm core width) and is 5 inches in height (127mm). This may be enough to keep IAT's in check on a completely unmodified / stock vehicle, but once users to start increase power through bolt-on modifications, tuning, and built engines, the OEM intercooler will become the Achilles Heel of the system with IAT's skyrocketing out of the optimal range and drastically lowering the performance capabilities of the vehicle. Enter CSF with their stepped core design, bar/plate high performance N54 intercooler. This "drop-in fit" intercooler, which requires no modifications to install, has a bottom / larger section that is 5.5in thick (140mm) with a front face that is massive 8.25in tall (210mm). Made from CSF's industry exclusive rounded bar/plate core design. The rounded front face of the cooling bars allows for better airflow into the core. Airflow hits the core surface, and rather than scattering like it does with hitting the face of a flat bar that all competing products have, it travels around the face of the round bar and into core for much better performance than both the OEM design (flat face) and all other aftermarket competitors (all have flat face tubes or bars). A huge improvement over the OEM unit, and enough to handle even the most advanced N54 engine builds. Good for 1000hp no problem!

This Part Fits:

Year Make Model Submodel
2008-2013 BMW 135i Base
2013 BMW 135is Base
2007-2013 BMW 335i Base
2009-2013 BMW 335i xDrive Base
2011-2013 BMW 335is Base
2007-2008 BMW 335xi Base
2013-2015 BMW X1 xDrive35i
2009-2016 BMW Z4 sDrive35i
2011-2016 BMW Z4 sDrive35is
