RockJock Johnny Joint 2 1/2in Narrow Forged Long Shank 1 1/4in-12 RH Threads 2.365in x .562in Ball

RockJock Johnny Joint 2 1/2in Narrow Forged Long Shank 1 1/4in-12 RH Threads 2.365in x .562in Ball

$92.00 USD
$92.00 USD
RockJock
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

ROKRJ-335402-102
Looking for the lowest price?

Give us a call to get the best prices and parts for your build. Or, just call us with a cool racing story...either way we're here.

Phone Call or Text 336-900-7223

Email - support@eliteracefab.com

Out of stock
Suspension Arms & Components
RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint!...
Read more
Found a better price elsewhere?
secure-payments
View full details
Free S&H Over $100 to Lower 48 Freight Items & Fluids Only Exception
Easy 30 Days- No Hassle Returns
37,000+ 5 Star Reviews
MFG Fitment Guarantee
Free S&H Over $100 to Lower 48 Freight Items & Fluids Only Exception
Easy 30 Days- No Hassle Returns
37,000+ 5 Star Reviews
MFG Fitment Guarantee

Description

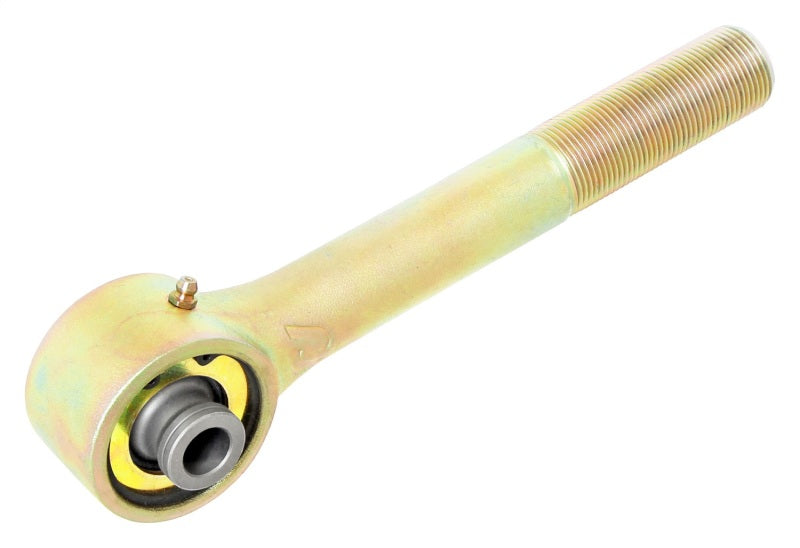

RockJocks narrow forged Johnny Joints for fabricators and suspension system builders offer 40 degrees of unrestricted movement in any direction as compared to 22 degrees on a common heim joint! Johnny Joint rod ends offer cushioning that a heim joint cannot provide via high-density urethane bushing that encases the inner ball. The heat treated center balls are cross-drilled for thru-bolt lubrication and the joint internals are retained with 2 heavy duty, heat treated side washers and a snap ring. This specific joint is a 2 1/2 in. diameter, narrow body and features a 9 1/2 in. long shank, from CL of joint to end of tip of threads), 3 1/2 in. of 1 1/4 in.-12 RH threads and a 2.365 in. wide x .562 in. thru-hole center pivot ball. Additional features of the long shank design include the the jam nut being pushed outward, away from the bracket that the joint mounts in to provide more clearance and accessibility to the jam nut. Also, the smooth shank area of the joint may have a bend applied to it in a press to angle the joint for a perfect fit in your application or to gain clearance in tight spots. Joint is externally greasable via a zerk fitting. Finish is gold zinc plating.
